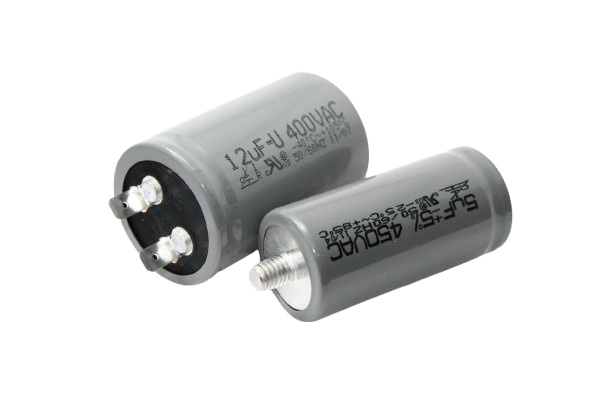

Motor Start

Dielectric：Metallized Polypropylene film
Winding：Non-inductive type
Protection：Round Aluminum can with heat-shrinkable tubing cover,and UL 94V-0 epoxy resin filled.
Lead style：
1) PC：PVC insulation wire
2) FT：Fast-on terminals
Marking：Manufacturer’s logo, rated capacitance, tolerance ,rated voltage, approvals,operating temperature rated frequency, date code, series

Start capacitor (Start Capacitor) is also called starting capacitor or starting capacitor:
Typically used for single-phase induction motors. It provides additional torque when the motor starts to help the motor overcome the initial static inertia and reach operating speed.

When the motor starts, the starting capacitor is connected in series with the starting winding to increase the starting torque.
After starting, when the motor reaches a certain speed, the centrifugal switch or electrical switch will disconnect the starting winding and capacitor, leaving only the running winding working.

Startup capacitors usually have higher capacitance values but only work for a short period of time. They must be able to withstand high voltages and release energy quickly.

Enhanced starting performance: The starting capacitor can provide a larger initial current to help the motor start quickly.
Improve efficiency and stability: Running capacitors can smooth current fluctuations, maintain stable operation of electric motors, and improve efficiency.
Reduce power consumption: Capacitors can improve power factor and reduce power consumption.
Common applications include:
Household appliances (such as air conditioners, washing machines, refrigerators)
Industrial equipment (such as fans, pumps, compressors)
Agricultural equipment (such as irrigation pumps)
The selection of capacitors for motors in different applications will vary depending on the type, power and working environment of the motor.
Install:
Select the appropriate capacitance value and withstand voltage value according to the power and voltage of the motor.
The required capacitor size is usually indicated on the motor nameplate.
replace:
Check capacitors regularly for bulges, leaks, or other signs of damage.
Use a multimeter to measure the capacitance value and make sure it is within the specified range.
Safety Precautions:
Power-off operation: Before checking or replacing the capacitor, be sure to disconnect the power supply to ensure safety.
Discharge treatment: The starting capacitor may still be charged after use and needs to be discharged through appropriate methods.

Motor Start
Rated Capacitance (Cr)	Capacitance values up to 150μF
Rated Voltage (RV)	250VAC～600VAC (at 50/60HZ)
Capacitance tolerance (at 1KHZ)	±5%(J), ±10%(K), +10/-5%(U) (Other tolerance upon request)
Operating temperature range	Min. temperatures：-40℃, -25℃ Max. temperatures：+70℃, +85℃, +105℃
Withstand voltage (at 25±5℃)	Between terminals：1.75×RV for 10Sec. No flashover or permanent breakdown shall occur, but self-healing are allowed. Between terminals and case：2RV+1KV(2000V Min.) for 2～60Sec. During this test, no dielectric breakdown or flashover shall occur.
Insulation Resistance (Rᵢₙₛ)	Measured between terminals at 25±5℃,after 1 minute of electrification at 100VDC Rᵢₙₛ ≧10³MΩ.μF or τ≧1000s (time constant τ=Cr×Rins)
Dissipation Factor (DF)	tan δ：0.5%Max. Measured at 25±5℃, 1KHZ
Endurance Test	Test conditions Temperature：The maximum permissible capacitor operating temp Voltage applied：1.25RV continuous Performance During this test, no permanent breakdown, interruption or flashover shall occur. Capacitance change(△C/C)：≦±3%
Damp-heat Test	Test conditions Temperature：40±2℃ Relative humidity：90~95% Test duration：1000±24h Performance Capacitance change(△C/C)：≦±0.5

In addition, the trend of DIY (do-it-yourself) repair of home appliances is becoming more and more popular. Our company also provides retail services of metallized film capacitors. The transaction process is as follows:

Price

Prices will vary depending on specifications (such as capacitance, withstand voltage value) and quantity.
There are often discounts for bulk purchases, and retail purchase prices may be slightly higher.

Availability

Delivery time depends on stock availability. Some specifications of capacitors may require longer lead times

Minimum order quantity (MOQ)

Although it is retail, some suppliers may still require minimum order quantities, especially for more expensive specifications.

Payment method

Domestic (Taiwan) retail: Bank transfer and cash payment methods are accepted.
Domestic (outside Taiwan) retail: Only PayPal payment method is accepted.
We will not start production until we confirm receipt of payment.

Freight and delivery

Domestic or international shipping will have different shipping charges, which will be adjusted based on weight, location and delivery speed.
After the product is completed, we will arrange delivery and provide the buyer with a logistics tracking number to track the delivery status of the package.

Return Policy

Retail products cannot be returned once opened, as these products are highly specialized to the user.
