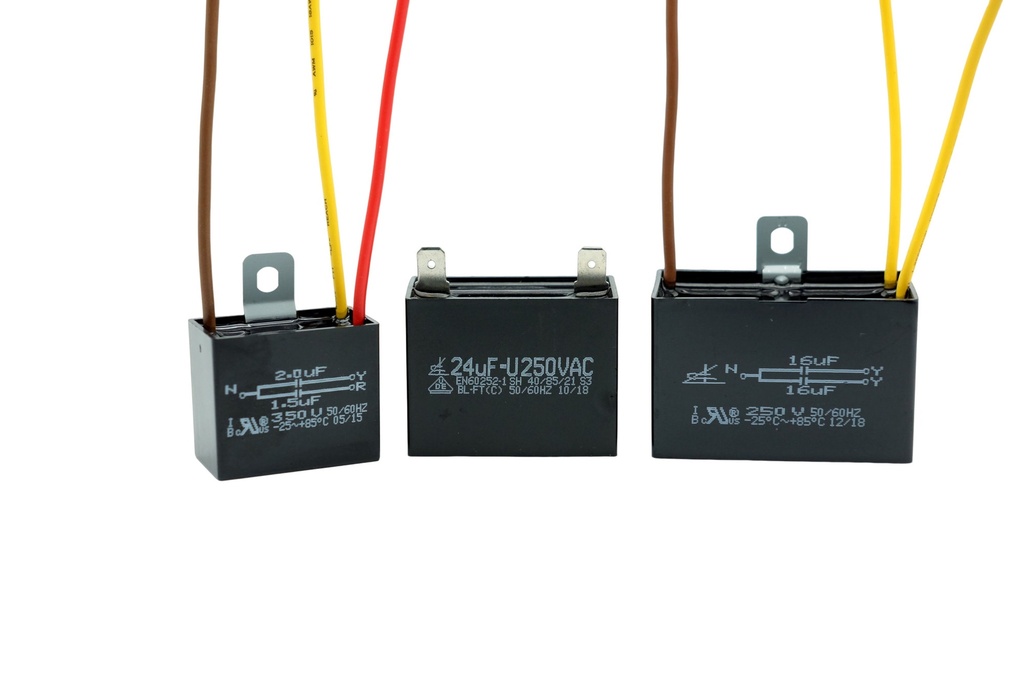

Range Hood

https://www.lung-chen.com/web/image/product.template/20/image_1920?unique=2e715ed

Dielectric：Metallized Polypropylene or Polyester film
Winding：Non-inductive type
Protection：Epoxy resin filled
BO type : Rectangular Plastic Case
BL type : With mounting plates in case
BT type : With mounting metal plates on top of case
BR type : Round plastic case

Lead style：
TC : Tinned copper wire
PC : PVC insulation wire
ST : Soldering terminals
FT : Fast-on terminals

    This combination does not exist.

    It is mainly used to start and run the motor to ensure the normal operation of the range hood fan. The main functions are as follows:

    • Start Capacitor:
      It is used to increase the starting torque and help the motor overcome the initial resistance when starting.
      These capacitors usually have a high capacitance value and a short operating time because they only function during the startup process.

    • Run Capacitor:
      Maintain a stable current during motor operation and improve the efficiency and operating performance of the motor.
      These capacitors usually have lower capacitance values and are capable of operating for long periods of time.

    When replacing or repairing the capacitor of the range hood, you should pay attention to the following points:

    • Capacitance Value: Confirm that the capacitance value of the new capacitor matches the original capacitor, in microfarads (µF).
    • Voltage Rating: The rated voltage of the capacitor should be at least equal to or higher than the rated voltage of the original capacitor.

    If you need to replace a capacitor, we recommend consulting your range hood's manual or contacting a professional technician to ensure the correct capacitor is selected and installed.

    Range Hood
    Rated Capacitance (Cr)
    		1.0μ～30μF
    Rated Voltage (RV)
    		160VAC～600VAC
    Capacitance tolerance (at 1KHZ)
    		±5%(J), ±10%(K), +10/-5%(U),
    (Other tolerance upon request)
    Operating temperature range
    		Min. temperatures：-40℃, -25℃
    Max. temperatures：+70℃, +85℃
    Withstand voltage (at 25±5℃)
    • Between terminals：1.75×RV for 10 Sec.
      No flashover or permanent breakdown shall occur, but self-healing are allowed.
    • Between terminals and case：2RV+1KV(2000V Min.) for 2～60 Sec.
      During this test, no dielectric breakdown or flashover shall occur.
    Insulation Resistance (Rᵢₙₛ)
    		Measured between terminals at 25±5℃,after 1 minute of electrification at 100VDC
    Rᵢₙₛ ≧10³MΩ.μF
    or τ≧1000s (time constant τ=Cr×Rins)
    Dissipation Factor (DF)tan δ, measured at 25±5℃, 1KHZ
    Cr＞1μF：0.8%Max.
    Endurance Test
    • Test conditions
      Temperature：The maximum permissible capacitor operating temp
      Voltage applied：1.25RV continuous
    • Performance
      During this test, no permanent breakdown, interruption or flashover shall occur.
      Capacitance change(△C/C)：≦±3%
    Damp-heat Test
    • Test conditions
      Temperature：40±2℃
      Relative humidity：90~95%
      Test duration：1000±24h
    • Performance
      Capacitance change(△C/C)：≦±0.5%

    In addition, the trend of DIY (do-it-yourself) repair of home appliances is becoming more and more popular. Our company also provides retail services of metallized film capacitors. The transaction process is as follows:

    Price

    Prices will vary depending on specifications (such as capacitance, withstand voltage value) and quantity.
    There are often discounts for bulk purchases, and retail purchase prices may be slightly higher.

    Availability

    Delivery time depends on stock availability. Some specifications of capacitors may require longer lead times

    Minimum order quantity (MOQ)

    Although it is retail, some suppliers may still require minimum order quantities, especially for more expensive specifications.

    Payment method

    Domestic (Taiwan) retail: Bank transfer and cash payment methods are accepted.
    Domestic (outside Taiwan) retail: Only PayPal payment method is accepted.
    We will not start production until we confirm receipt of payment.

    Freight and delivery

    Domestic or international shipping will have different shipping charges, which will be adjusted based on weight, location and delivery speed.
    After the product is completed, we will arrange delivery and provide the buyer with a logistics tracking number to track the delivery status of the package.

    Return Policy

    Retail products cannot be returned once opened, as these products are highly specialized to the user.
