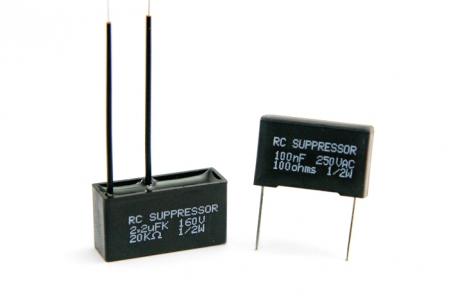

RC

https://www.lung-chen.com/web/image/product.template/34/image_1920?unique=3e882de

Extend electrical contact life
Effectively suppress contact sparks
Effectively suppress surge voltage
Effectively suppress EMI

    This combination does not exist.

    RC
    Rated Capacitance (Cr)
    		0.1μ～1.0μF
    Rated Voltage (RV)
    		125VAC、250VAC
    Capacitance tolerance (at 1KHZ)
    		±5%(J), ±10%(K)
    Operating temperature range
    		Min. temperatures：- 40℃, -25℃
    Max. temperatures：+70℃, +85℃
    Withstand voltage (at 25±5℃)
    • Between terminals:1.75xRV for 1 〜10 Sec.
      No flashover or permanent breakdown shall occur, but self-healing are allowed.
    • Between terminals and case: 2RV+1 KV(2000V Min.) for 1 〜60 Sec・
      During this test, no dielectric breakdown or flashover shall occur.
    Insulation Resistance (Rᵢₙₛ)
    		Measured between terminals at 25±5°C, after 1 minute of electrification at 100VDC
    Rᵢₙₛ ≥ 10MΩ.μF
    Dissipation Factor (DF)

    tanδ measured at 25±5°C, 1KHZ
    0.1μF≤Cr≤1μF:0.8%Max.
    Cr>1μF:1.0%Max

    Resistance type
    		Carbon film fixed resistor
    Resistance range
    		47Ω ~120Ω
    Resistance tolerance
    		±5%, ±10%
    Power rating
    		1/4watt, 1/2watt

    In addition, the trend of DIY (do-it-yourself) repair of home appliances is becoming more and more popular. Our company also provides retail services of metallized film capacitors. The transaction process is as follows:

    Price

    Prices will vary depending on specifications (such as capacitance, withstand voltage value) and quantity.
    There are often discounts for bulk purchases, and retail purchase prices may be slightly higher.

    Availability

    Delivery time depends on stock availability. Some specifications of capacitors may require longer lead times

    Minimum order quantity (MOQ)

    Although it is retail, some suppliers may still require minimum order quantities, especially for more expensive specifications.

    Payment method

    Domestic (Taiwan) retail: Bank transfer and cash payment methods are accepted.
    Domestic (outside Taiwan) retail: Only PayPal payment method is accepted.
    We will not start production until we confirm receipt of payment.

    Freight and delivery

    Domestic or international shipping will have different shipping charges, which will be adjusted based on weight, location and delivery speed.
    After the product is completed, we will arrange delivery and provide the buyer with a logistics tracking number to track the delivery status of the package.

    Return Policy

    Retail products cannot be returned once opened, as these products are highly specialized to the user.
